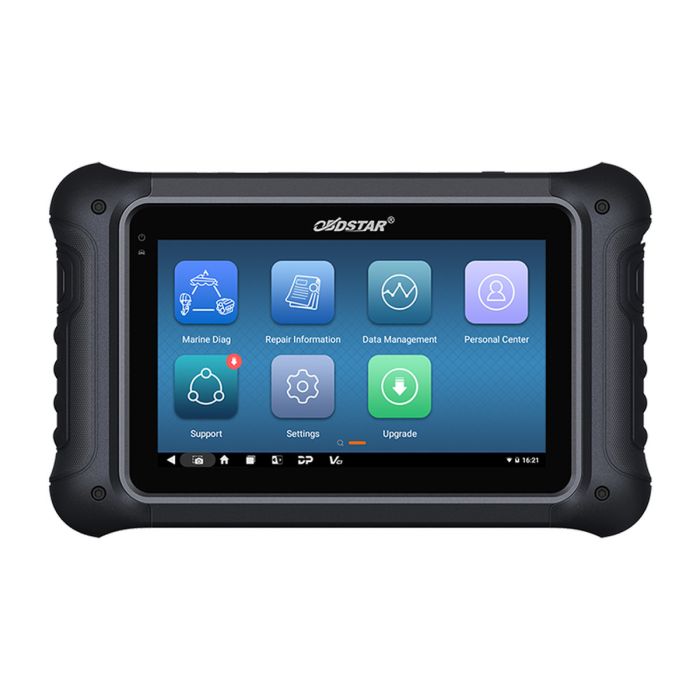

OBDSTAR ISCAN PRO VOLVO (MARINE) intelligent marine diagnostic devices
Functions
1. Android 5.1.1 operation system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;
4. Menu arbitrary selection is more convenient and quicker;
5. Record and play back real-time data flow, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the internet, one-click software upgrade;
7. One-click remote function, OBDSTAR technical staff remote assistance.
Advanced Function
1. The OBDSTAR mobile APP integrates functions such as diag socket location, technical bulletin etc., working with ISCAN PRO to make marine diagnosis more accurately and efficiently;
2. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to analyze faults easily;
3. Support Parameter Programming, Station Configuration, Gain and Stability Calibration, ACP History test, Engine hours programming 1, Engine hours programming 2, Engine hours programming 3, Engine hours programming 4, AdBlue Dosing System tests, Engine Run-up test, Injectors shut off manual 1, Injectors shut off manual 2, Spark shut off test, Fuel pump relay test, Idle Air Control reset test, Throttle activation test, Cylinder Compression mode, Injector control test, Idle speed control test, Spark Fire test, O2 sensor test, Misfire reset test and other special functions.
4. Support DC24V input.
Diagnostic support series
Support D3, D4/D6, D5-D16 GE, D5-D16 VE, D8/D13-1000, D9-D16, Gasoline, QL EST, D12, KAD-300, KAD-44, TAMD-74, TAMD-75, V6 - V8 and other models.
Specification
|
Operation system |
Android 5.1.1 |
|
CPU |
RK3128 quad-core ARM cortex A7 |
|
Battery |
3700mA, rechargeable polymer lithium battery |
|
Extension memory card |
32G micro SD (TF) card supported |
|
Storage capacity |
16GB |
|
LCD |
7.0 inch |
|
LCD resolution |
1024*600 |
|
Touch screen |
Capacitive touch screen |
|
Wifi |
Supported |
|
Working temperature |
-20℃—55℃ (14℉—131℉) |
|
Storage temperature |
-20℃—70℃ (-4℉—158℉) |
|
Weight |
About 0.766kg |
|
Dimension |
243mm*148mm*36mm |
